1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz

1
MOQ
1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Suhu maksimal: 1800 ℃
Catu daya: 220V 50Hz
Kontrol suhu: Kontrol otomatis PID
ukuran tungku: 150*150*80mm, 200*150*150mm, 300*200*200mm
Ukuran luar: 735*750*1200mm, 700*670*930mm, 750*660*1020mm
Berat: 155kg, 190kg, 300kg
Peringkat kekuatan: 3kw, 5kw, 9kw
Presisi suhu: ± 1 ℃
tingkat pemanasan: 0-30 ℃ / mnt
Tipe Termokopel: Tipe B.
Elemen pemanas: batang silikon molibdenum
Mode tampilan: tampilan LED berwarna
cincin paking: Cincin fluor
Pompa vakum: Pompa vakum baling-baling putar tunggal yang diimers oli
Bahan tungku: Serat keramik polikristalin alumina tinggi
Menyoroti:

1800°C lab muffle furnace

,

PID auto control muffle furnace

,

220V 50Hz industrial drying oven
Informasi dasar
Tempat asal: Guangdong, Cina
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk
Liyi High Temperature 1800°C Heat Treatment Muffle Furnace
This high-performance muffle furnace is designed for scientific research institutions, universities, and industrial enterprises. It's ideal for high-temperature precision annealing, micro-crystallization, ceramic glaze preparation, mold annealing, powder metallurgy, plastic powder foam testing, nanomaterial sintering, metal part quenching, and other high-temperature heat treatment applications.
Key Features:
  • Maximum temperature of 1800°C
  • Temperature control precision of ±1℃
  • Adjustable heating rate (0-30℃/min)
  • Silicon molybdenum rod heating elements

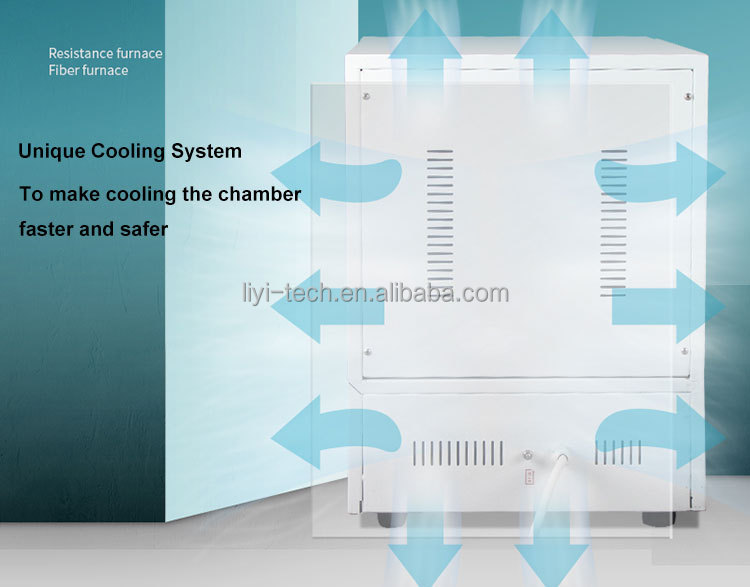

  • Double-layer forced air-cooling structure

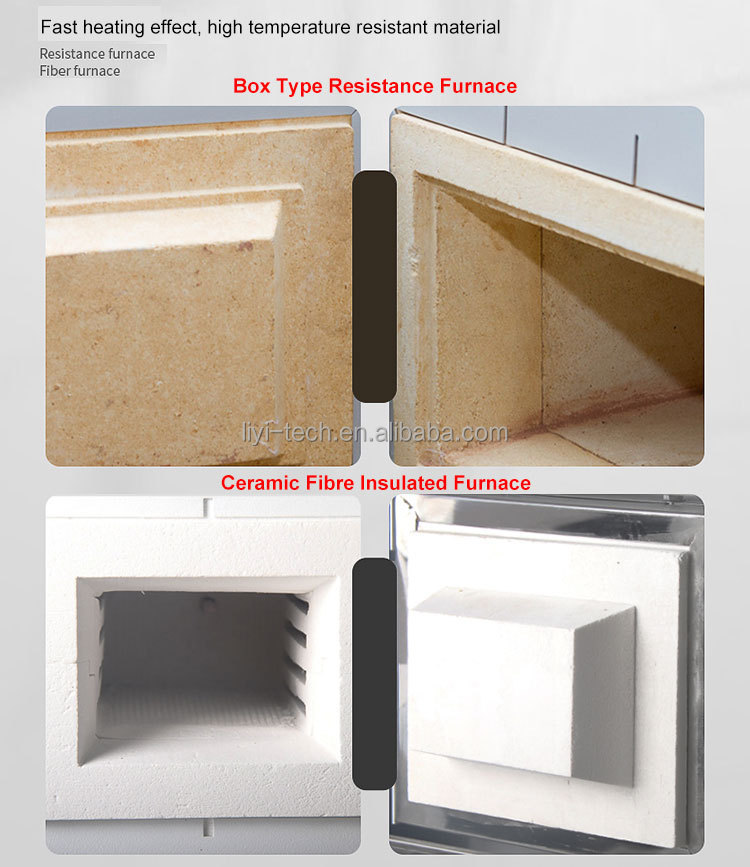

  • High alumina polycrystalline ceramic fiber construction
  • Color LED display for easy monitoring
Technical Specifications:
Model LY-16-17TP LY-16-18TP LY-16-19TP
Furnace size (W*H*D) mm 150*150*80 200*150*150 300*200*200
Outer size (W*H*D) mm 735*750*1200 700*670*930 750*660*1020
Weight (Kg) 155 190 300
Power rating 3KW 5KW 9KW
Power 220V 50/60HZ
Temperature control precision ±1℃
Maximum temperature 1800℃
Heating rate 0-30℃/min (recommended less than 20℃/min)
Thermocouple Type B
Heating element Silicon molybdenum rod
Product Images

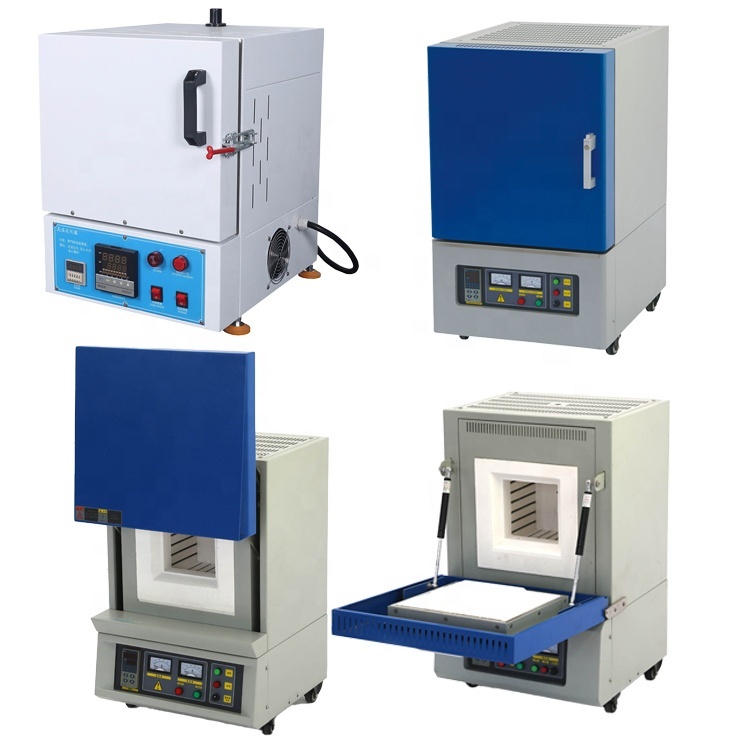

1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz 0

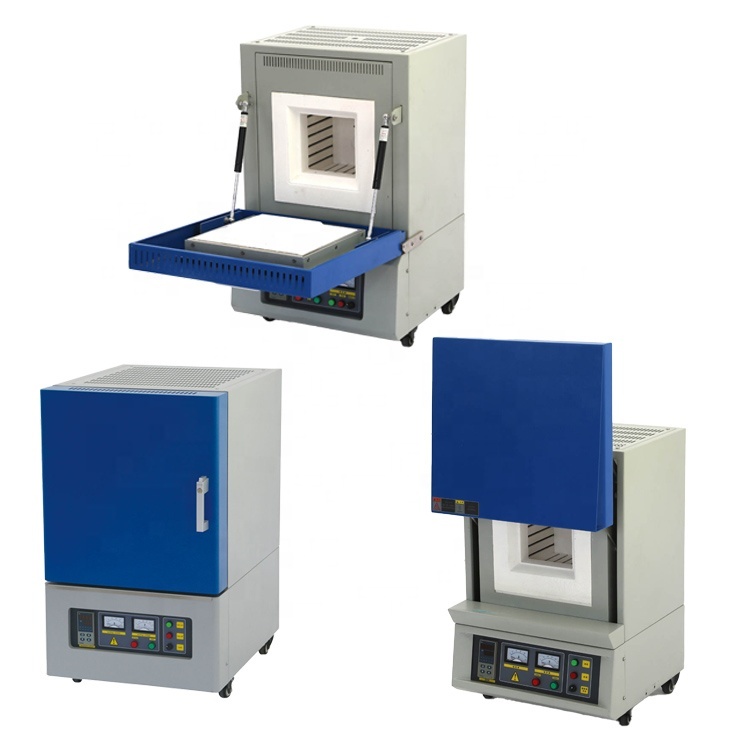

1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz 1

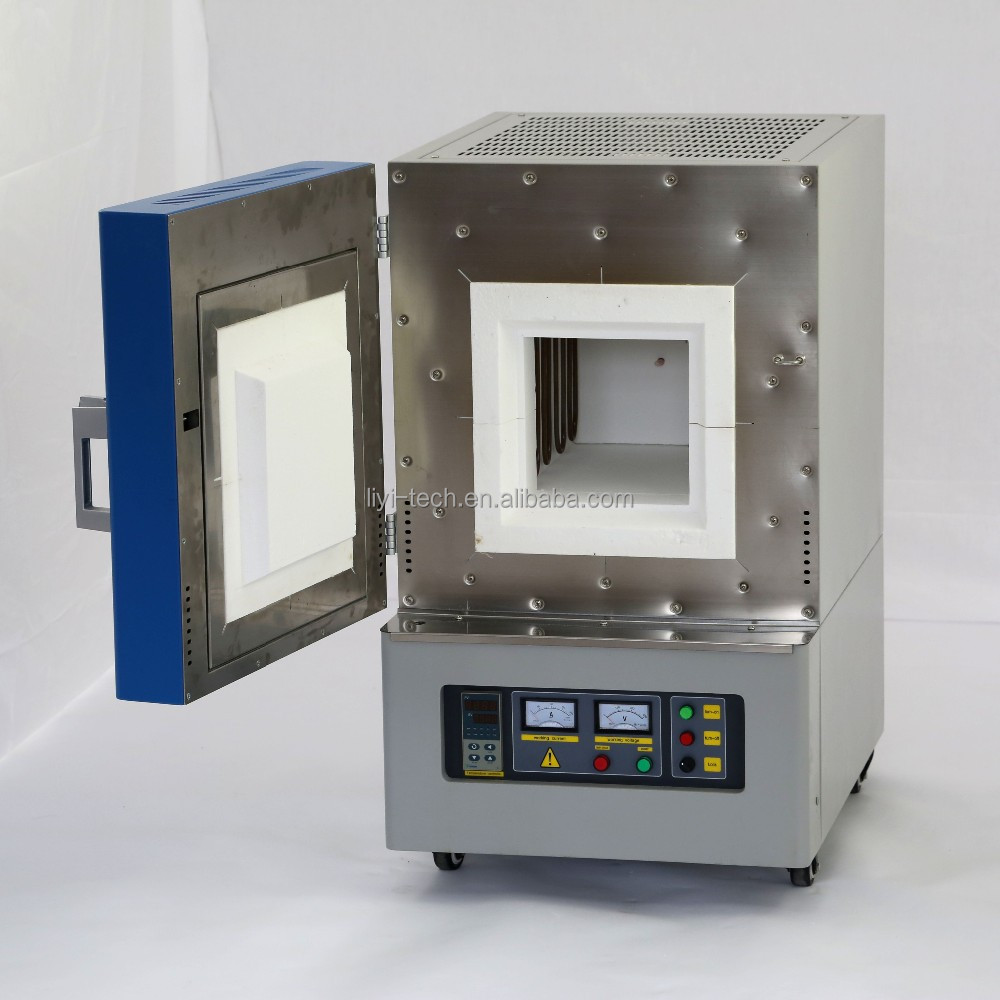

1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz 2

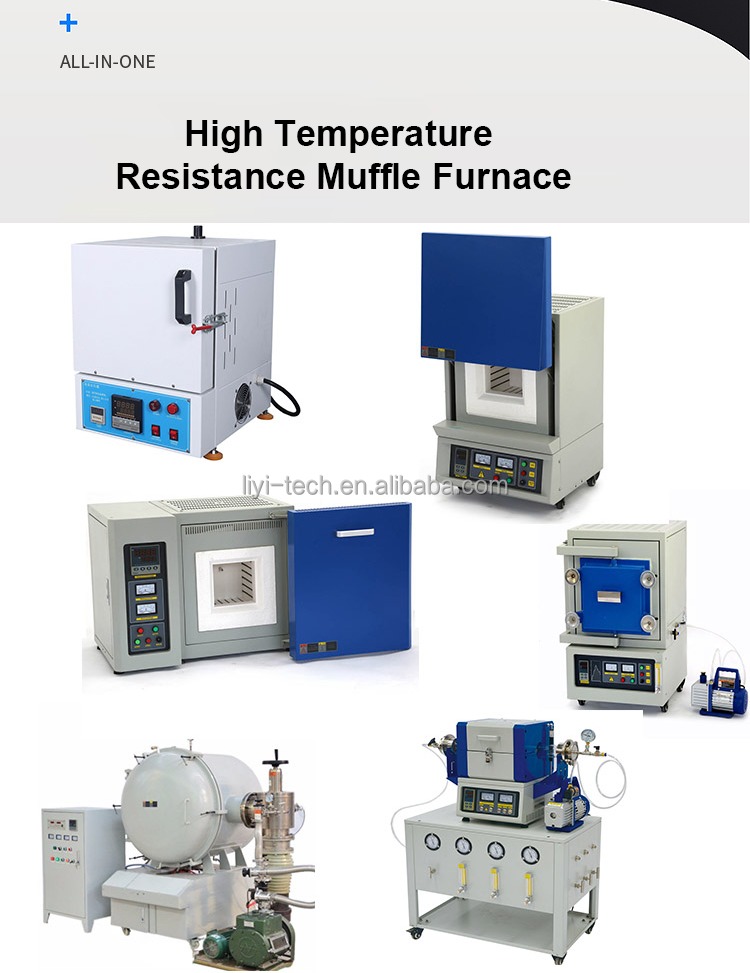

1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz 3
About Dongguan Liyi Environmental Technology Co., Ltd
We are a high-tech production-oriented enterprise specializing in developing and manufacturing various environmental equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers in over 150 countries and regions.
Our Capabilities:
  • Manufacturer of environmental chambers, industrial ovens, and testing equipment
  • Production base located in Dongguan, China's manufacturing center
  • Eastern China office in Kunshan for better service
  • Commitment to international testing standards and customer-specific requirements
1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz 4
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer. All machines come with 12 months warranty after shipment (extended to 14 months for sea transportation). We offer free maintenance during warranty period and provide solutions within 24-48 hours for any issues.
2. What's the delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be specially arranged.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM/ODM services with your logo.
4. How can I install and use the machine?
We provide English operation videos. Most machines are shipped fully assembled - just connect power to start. We can also assist with on-site installation if needed.
1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz 5
