Name: 750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber
Brand: Dongguan Liyi Environmental Technology Co., Ltd.
SKU: Liyi
Price: 40,000.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Volume ruang uji: 108L/270L/600L/700L/1000L atau dibuat khusus

Jumlah Semprotan: 1.0~2.0ml/80cm2/jam

Rentang pH: 6.5~7.2/3.0~3.2

Catu daya: 220V 50Hz

Suhu ruang uji: NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Suhu udara jenuh: NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Jenis pengontrol: Layar sentuh PID atau LCD

Ukuran ruang uji: 60*45*40cm, 90*60*50cm, 1200*1000*500cm, 1500*1000*500cm, 2000*1000*500cm

Kapasitas cairan maksimal: 15L, 25L, 40L

Konsumsi daya: AC220V,10A hingga AC220V,30A

Jenis Nozzle Semprot: Prinsip Bo Nut

Menampilkan parameter: Suhu, kelembaban, tekanan, kapasitas semprotan, waktu

Standar Desain: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371

Varian model: LY-609-60, LY-609-90, LY-609-120, LY-609-150, LY-609-200

Kontrol suhu: Komputer mikro digital presisi

Menyoroti:

750L Salt Spray Test Chamber

1000L Salt Fog Test Chamber

NSS.ACSS 35°C±1°C Cyclic Corrosion Chamber

Informasi dasar

Tempat asal: Guangdong, Cina

Nama merek: Liyi

Nomor model: Liyi

Syarat-syarat pembayaran & pengiriman

Galeri

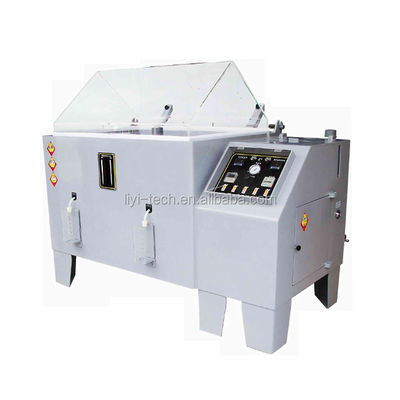

750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber

Deskripsi Produk

Liyi Salt Spray Composite Test Chamber

The Liyi Salt Spray Test Machine evaluates corrosion resistance for iron metals and their inorganic or organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes. This accelerated corrosion test predicts coating durability by analyzing oxide formation over time, with test duration varying by coating resistance.

Key Features

Bo Nute Principle spray nozzle prevents saline crystallization while atomizing test solution
Digital microcomputer controller ensures precise temperature regulation

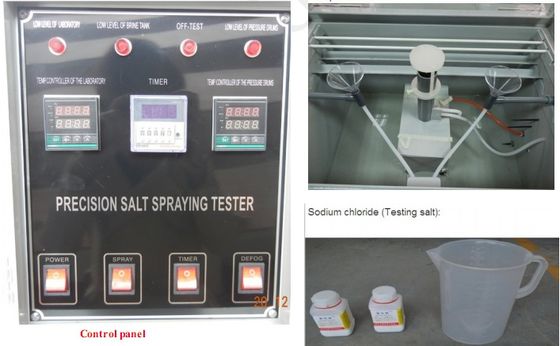

Comprehensive display shows temperature, humidity, pressure, spray volume, and timing
Complies with international testing standards worldwide

Technical Specifications

Model	LY-609-60	LY-609-90	LY-609-120	LY-609-150	LY-609-200
Design Standard	GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L)	108L	270L	600L	750L	1000L
Temperature (Test Chamber)	NSS/ACSS: 35°C±1°C \| CASS: 50°C±1°C
Temperature (Saturated Air Cylinder)	NSS/ACSS: 47°C±1°C \| CASS: 63°C±1°C
Chamber Dimensions (L×W×D cm)	60×45×40	90×60×50	120×100×50	150×100×50	200×100×50
Test Liquid Capacity (L)	15	25	40	40	40
Power Requirements	AC220V, 10A	AC220V, 15A	AC220V, 30A	AC220V, 30A	AC220V, 30A

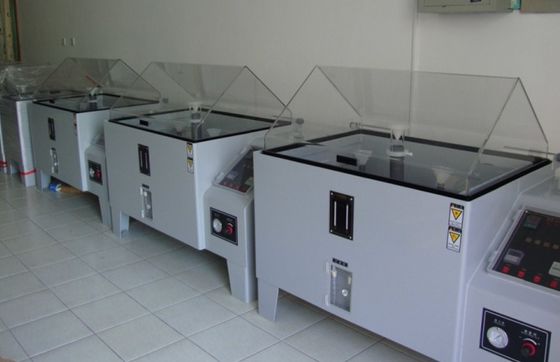

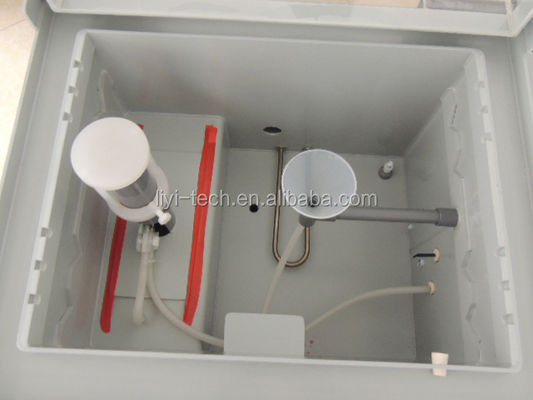

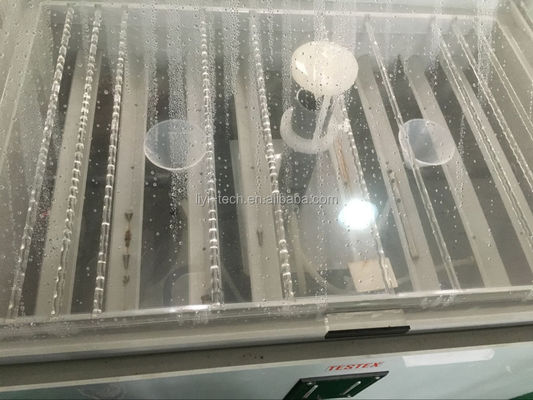

Product Images

Manufacturer Profile

Dongguan Liyi Environmental Technology Co., Ltd specializes in environmental testing equipment with advanced technology and comprehensive quality management. Our manufacturing base in Dongguan, Guangdong, supported by our Jiangsu office, serves customers in over 150 countries with reliable testing solutions for various industries.

Frequently Asked Questions

1. Are you the manufacturer? What is your warranty and after-sales service policy?

Yes, we are a professional manufacturer with 12 months warranty (extendable to 14 months for overseas shipments). We provide free maintenance during warranty and technical support via email or video call, with solutions typically provided within 24-48 hours of problem identification.

2. What is your standard delivery time?

Standard machines ship within 15-20 working days after deposit. We maintain stock for common models and can expedite production for urgent requirements.

3. Do you offer customization and OEM services?

We provide both standard and customized machines, including OEM/ODM services with client branding options.

4. How do I install and operate the equipment?

Machines ship pre-assembled with English operation videos. Most units only require power connection, though we offer on-site installation support when needed.
